Furnace Speed Control Board K894350
Sale price
$18.90
Regular price $84.36
Skip to product information

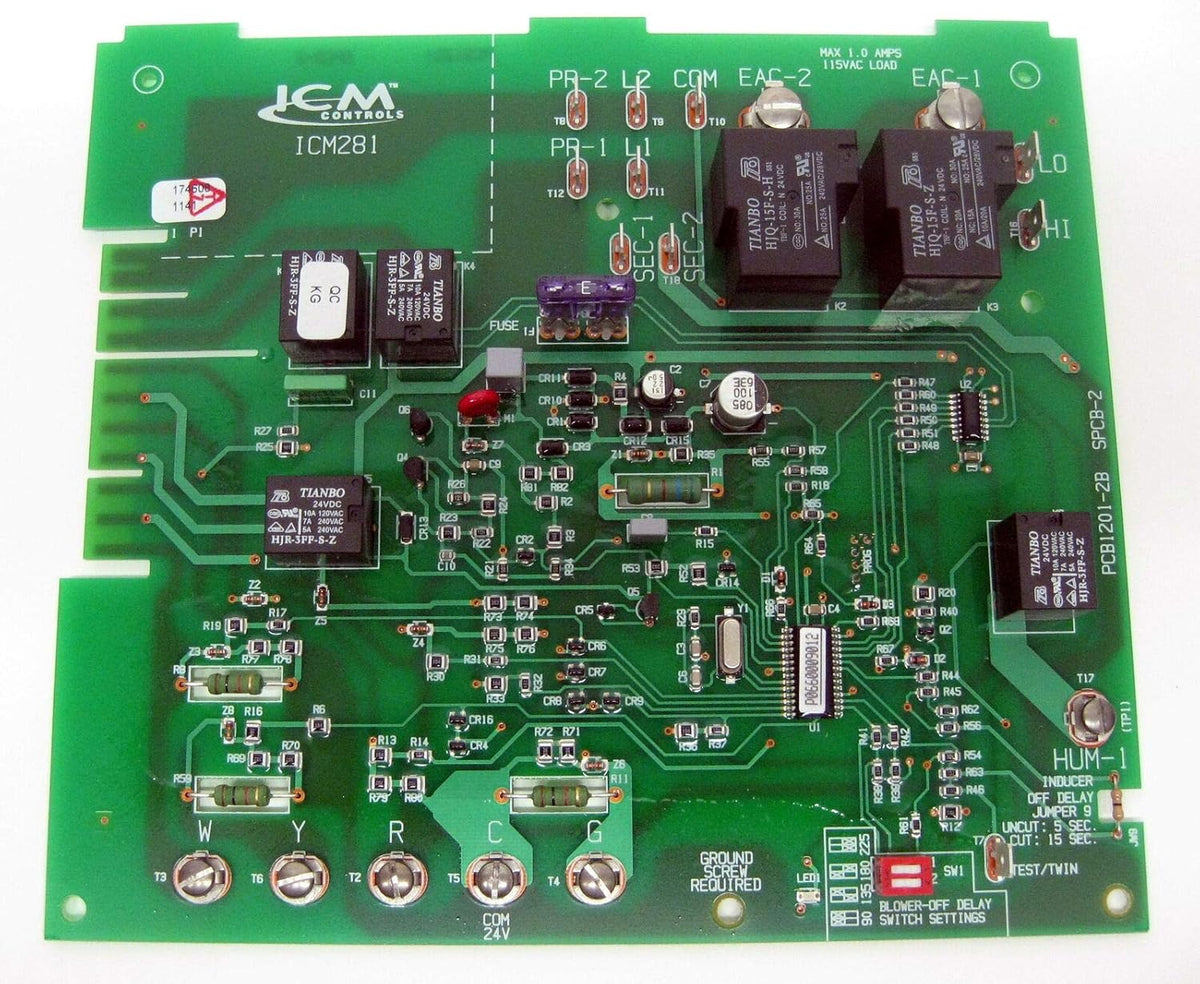

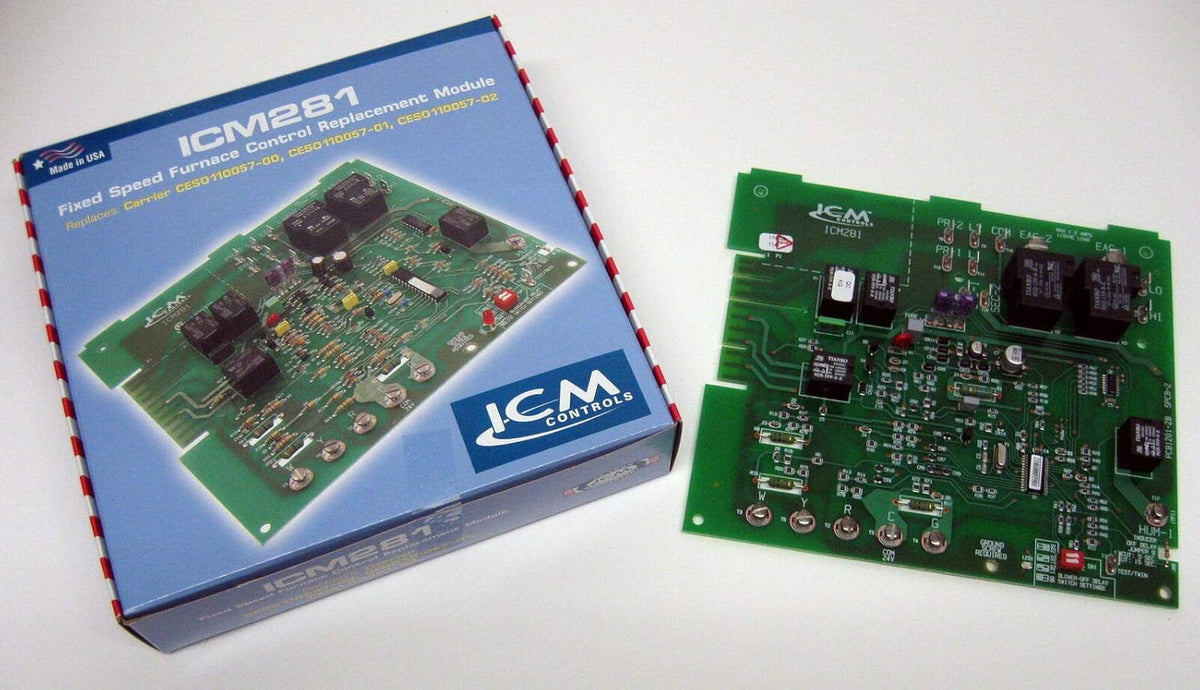

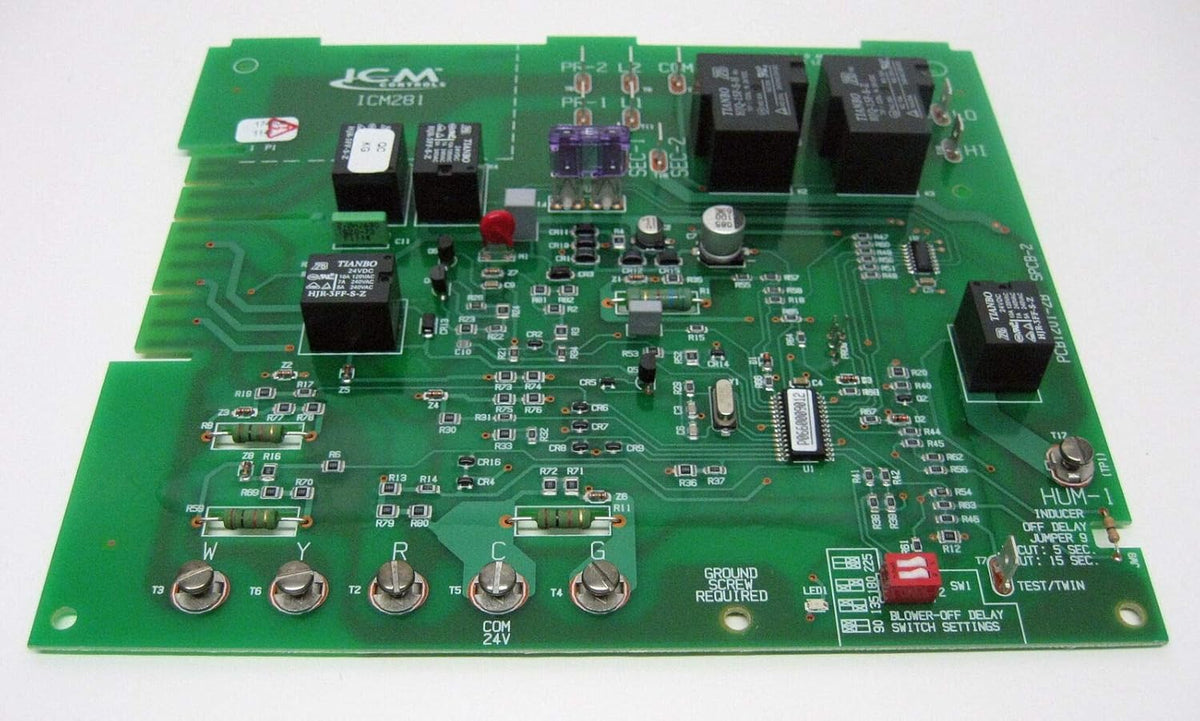

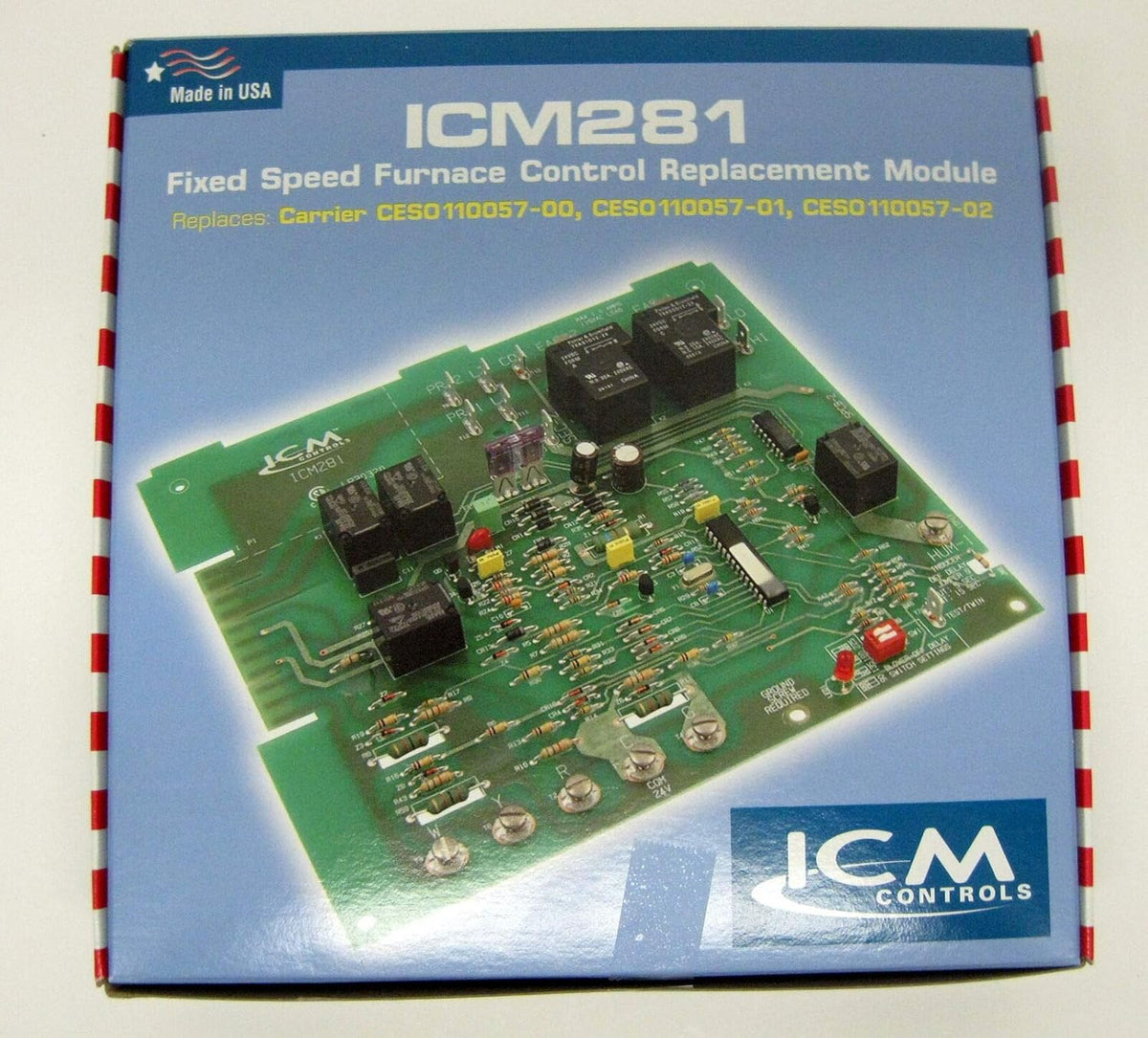

ICM281 Fixed Speed Furnace Control Replacement Module.
Replaces: Carrier CESO110057-00, CESO110057-01, CESO110057-02
Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
Furnace Speed Control Board K894350
Sale price
$18.90
Regular price $84.36
Shipping calculated at checkout.
ICM281 Fixed Speed Furnace Control Replacement Module.
Replaces: Carrier CESO110057-00, CESO110057-01, CESO110057-02
Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
ICM281 Fixed Speed Furnace Control Replacement Module. Replaces: Carrier CESO110057-00, CESO110057-01, CESO110057-02 FEATURES: Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner Microprocessor-based Designed for 100% gas shutoff in case of ignition failure Twinning compatible with other ICM281 boards Reverse polarity protection Secondary brownout voltage protection Compatible with 24 VAC standard thermostat Provides diagnostic LED to aid in troubleshooting SPECIFICATIONS: Electrical Voltage Range: Line (98 to 132 VAC) @ 60Hz Ignitor: 5A @ 120 VAC Cool Blower: 30A, 2HP, 240 VAC Heat: 5A, 1/2 HP, 240 VAC Inducer Motor: 4A, FLA-8.0
